Item code
SSF161.05HF
On backorder
Description

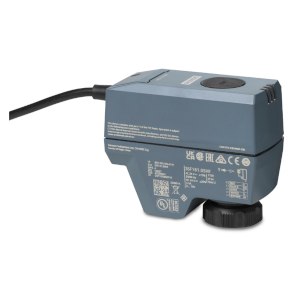

Electric actuator for use with SIEMENS valves with a 5.5 mm stroke, VVP47, VXP47 and VMP47 series for controlling hot or cold water coils in heating, ventilation, and air conditioning systems. Nominal force: 200 N. Automatic recognition of the valve stroke to which it is applied. Electrical connection via screw terminal block. Manual override with position and direction of movement indication. Control signal: 0...10 VDC. Stroke time: 30 s. Power supply 24 Vac/VDC.
Technical specifications
PROPERTY
VALUE
Control signal
Proporzionale
Power supply
AC/DC 24 V
Force / Torque
0...1000 N (lineare)
Weight
0.294 kg
