Item code
NF230A
On backorder
Description

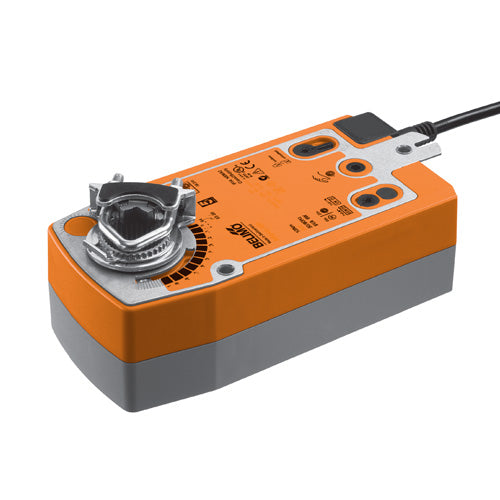

Spring return actuator for dampers, torque 10 Nm, runtime < 75 s, rotation angle 95°, power supply AC 230 V, On/Off control signal, IP54 protection, manual override with integrated position stop, spring return time < 20 s, 1m PVC cable connection, reversible direction of rotation (right/left), position indicator, for air dampers up to approx. 2 m².
Technical specifications
PROPERTY
VALUE
Control signal
2 fili
Power supply
AC 230 V
Force / Torque
0...10 Nm (rotativo)
Weight
2.1 kg
