Item code
VXG41.25
On backorder
Description

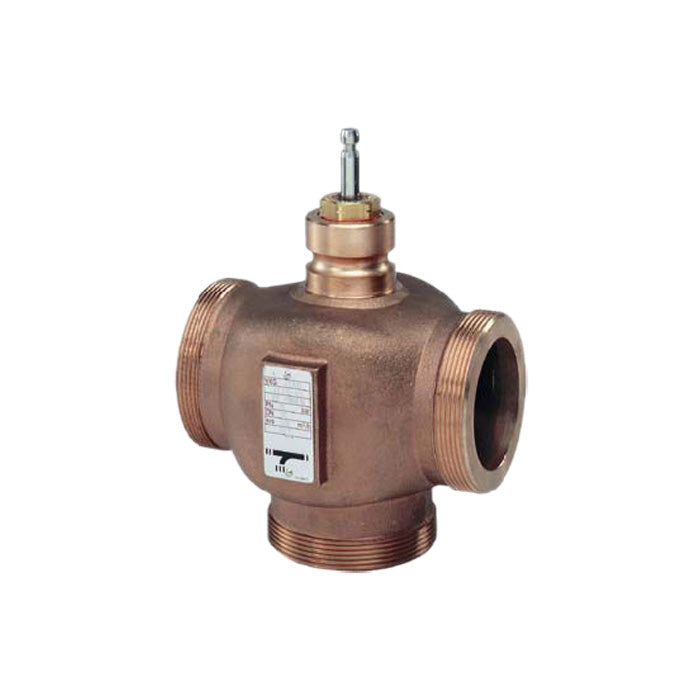

Three-way globe mixing or diverting valve, DN25 PN16 KVS= 10, for hot, cold, or sanitary water, bronze body CuSn5Zn5Pb2 with external threaded connections, bronze internal parts, CrNi stem, port A-AB logarithmic control characteristic, port B-AB linear control characteristic, port A-AB leakage < maximum 0.02% of Kvs, port B-AB leakage < 2% of Kvs, fluid temperature limits -25 / +150 °C, can be coupled with SAX, SKD, and SKB series actuators. Maximum applicable differential pressure: see technical bulletin with reference to the type of actuator applied.
Technical specifications
PROPERTY
VALUE
Connections
Filettato esterno
Ways
3 vie
Operating temperature
-25…+150 °C
Weight
1.65 kg
