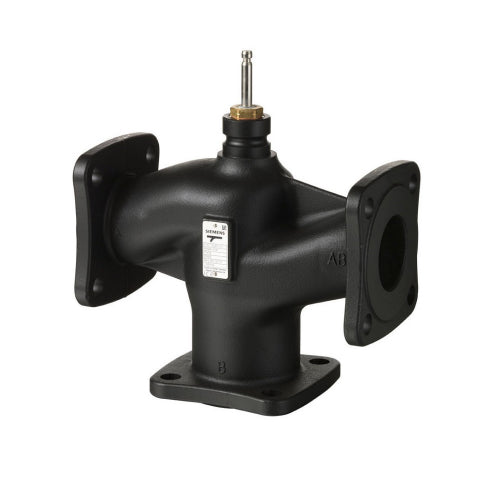

VXF42.150-400

Three-way globe mixing or diverting valve, DN150 PN16 KVS= 400, stroke 40 mm, for hot or cold water, cast iron body EN-GJL-250 with flanged connections, sealing system composed of brass elements, EPDM o-rings, PTFE sleeve, A-AB port linear control characteristic, B-AB port linear control characteristic, A-AB port leakage < maximum 0.02% of Kvs, B-AB port leakage < 3% of Kvs, fluid temperature limits -10...+150 °C, can be coupled with SAX, SKD, SKB, and SKC series actuators. Maximum applicable differential pressure: see technical bulletin with reference to the type of actuator applied.
