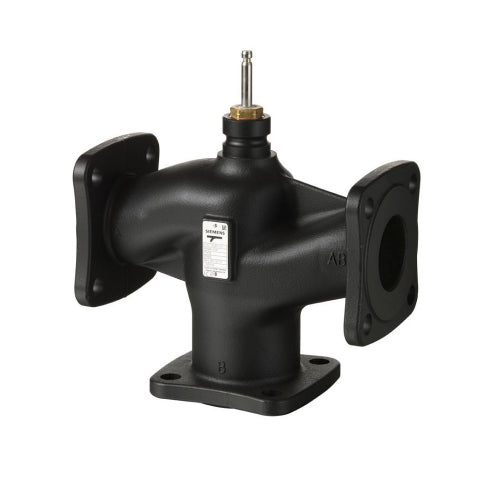

VXF32.40-25 (replaces VXF31.40-25)

Three-way globe mixing or diverting valve, DN40 PN16 KVS=25, for hot or cold water, cast iron body EN-GIL-250 with flanged connections, sealing system composed of brass elements, EPDM o-rings, PTFE sleeve, logarithmic port A-AB control characteristic (linear up to 0...30%), linear port B-AB control characteristic, port A-AB leakage < maximum 0.02% of Kvs, port B-AB leakage < 3% of Kvs, fluid temperature limits -10...+150 °C, can be paired with SAX, SKD, SKB, and SKC series actuators. Maximum applicable differential pressure: see technical bulletin with reference to the type of actuator applied.
