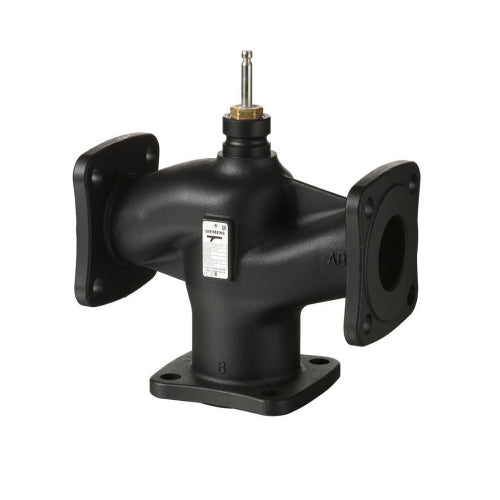

VXF32.40-16 (replaces VXF31.40-16)

Three-way globe mixing or diverting valve, DN40 PN16 KVS=16, for hot or cold water, cast iron body EN-GIL-250 with flanged connections, sealing system composed of brass elements, EPDM o-rings, PTFE sleeve, A-AB port logarithmic control characteristic (linear up to 0...30%), B-AB port linear control characteristic, A-AB port leakage < maximum 0.02% of Kvs, B-AB port leakage < 3% of Kvs, fluid temperature limits -10...+150 °C, can be coupled with SAX, SKD, SKB and SKC series actuators. Maximum applicable differential pressure: see technical bulletin with reference to the type of actuator applied.
