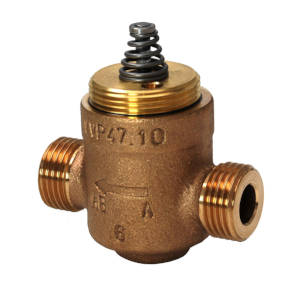

VVP47.10-0.63

Two-way seat and plug valves, with bronze body, threaded connections according to ISO 228/1 standards, and a knob for manual control. Threaded connection: G ½ [in], DN: 10 [mm], Kvs: 0.63 [m³/h]. Usable for controlling terminal units, chilled ceilings, and zone heating. Suitable for hot and cold water (VDE 2035), max. 50% glycol. Can be used with actuators from series: SFP.. and SSF161.05HF Stroke: 5.5 [mm]. Leakage: max. 0.05% of Kvs value. Return spring force: 200 [N]. Fluid temperature: 2…110 [°C]. Characteristic: equal percentage. Valve body: Bronze RG5. Stem, plug, and seat: Stainless steel. Mounting: vertical or horizontal. VXP47.. valves can only be used as mixing valves
