Item code
VVG41.25
On backorder
Description

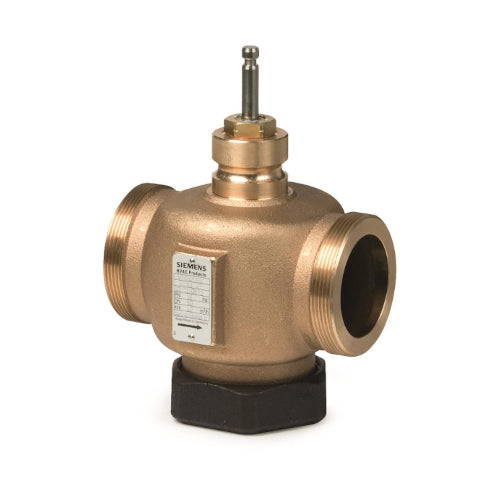

Two-way globe control valve, DN25 PN16 KVS= 10, for hot and cold water, bronze body CuSn5Zn5Pb2 with external threaded connections, bronze internal parts, CrNi stem, A-AB port logarithmic control characteristic, A-AB port leakage < max 0.02% of Kvs, fluid temperature limits -25…+150 °C, can be coupled with SAX, SKD and SKB series actuators. Maximum applicable differential pressure: see technical bulletin with reference to the type of actuator applied
Technical specifications
PROPERTY
VALUE
Connections
Filettato esterno
Ways
2 vie
Operating temperature
-25…+150 °C
Weight
1.6 kg
