Item code
VVG41.20
On backorder
Description

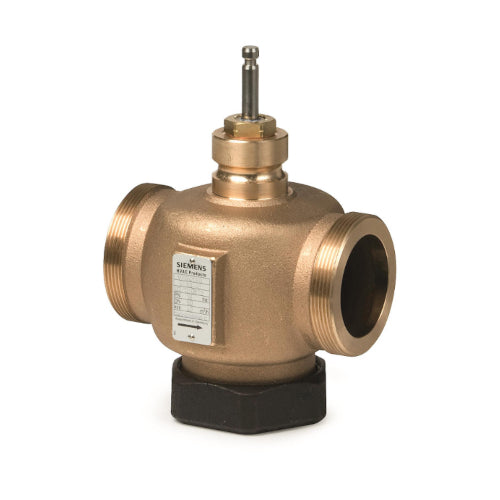

Two-way globe control valve, DN20 PN16 KVS= 6.3, for hot and cold water, CuSn5Zn5Pb2 bronze body with male threaded connections, bronze internal parts, CrNi stem, A-AB port equal percentage flow characteristic, A-AB port leakage < 0.02% of Kvs, fluid temperature limits -25…+150 °C, can be coupled with SAX, SKD and SKB series actuators. Maximum applicable differential pressure: see technical bulletin with reference to the type of actuator applied
Technical specifications
PROPERTY
VALUE
Connections
Filettato esterno
Ways
2 vie
Operating temperature
-25…+150 °C
Weight
1.3 kg
