Item code
VVG41.14
On backorder
Description

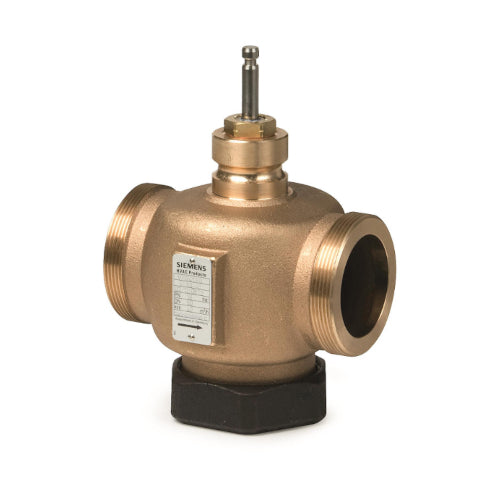

Two-way globe control valve, DN15 PN16 KVS= 2.5, for hot and cold water, bronze body CuSn5Zn5Pb2 with external threaded connections, bronze internal parts, CrNi stem, logarithmic A-AB port control characteristic, A-AB port leakage < maximum 0.02% of Kvs, fluid temperature limits -25…+150 °C, can be coupled with SAX, SKD and SKB series actuators. Maximum applicable differential pressure: see technical bulletin with reference to the type of actuator applied
Technical specifications
PROPERTY
VALUE
Connections
Filettato esterno
Ways
2 vie
Operating temperature
-25…+150 °C
Weight
1.25 kg
