Item code
VFBV315
On backorder
Description

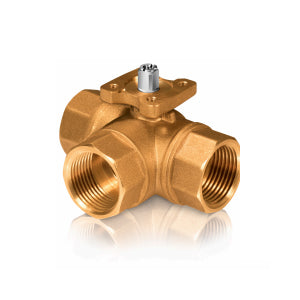

Three-way ball control valve, 1/2" female gas threaded connections, DN15, PN40, KVS = 6.3, CW617N brass body, stainless steel internal parts, EPDM O-ring stem seals, PTFE valve seat, EPDM internal seal O-ring, fluid temperature -5...+140 °C. Control port A-AB: optimized equal-percentage control curve in the opening range, bypass B-AB: linear control curve. Control port A-AB: perfect shut-off leakage rate, bypass -B-AB perfect shut-off leakage class.
Technical specifications
PROPERTY
VALUE
Connections
Filettato interno
Ways
3 vie
Operating temperature
-10…+150 °C
Weight
0.37 kg
Documentation
