Item code
VFBV232
On backorder
Description

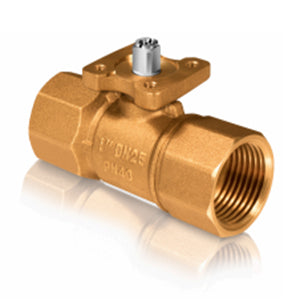

Two-way ball control valve, 1 1/4" female gas threaded connections, DN32, PN40, KVS = 25, CW617N brass body, stainless steel internal parts, 20 EPDM O-ring stem seals, PTFE valve seat, EPDM internal seal O-ring, fluid temperature -5...+140 °C. Control port A-AB: optimized equal percentage control curve in the opening range. Control port A-AB: perfect shut-off leakage rate.
Technical specifications
PROPERTY
VALUE
Connections
Filettato interno
Ways
2 vie
Operating temperature
-10…+150 °C
Weight
0.95 kg
