Item code
VDC8
On backorder
Description

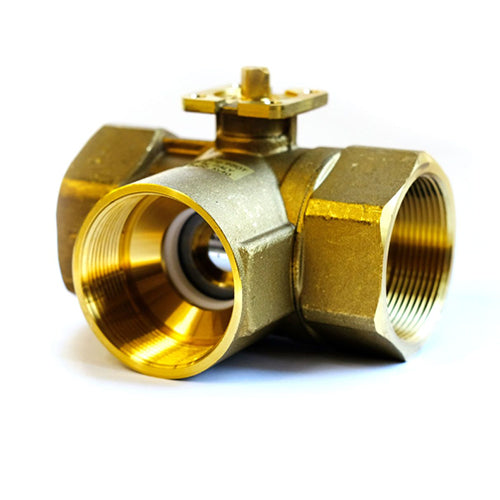

Three-way ball control valve, 2" female gas threaded connections, DN50, PN40, KVS = 40, CW617N brass body, chrome-plated brass internal parts, EPDM O-ring stem seals, PTFE valve seat, EPDM internal seal O-ring, fluid temperature -10...+130 °C. Control port A-AB: optimized equal-percentage control curve in the opening range, bypass B-AB: linear control curve. Control port A-AB: perfect seal leakage rate, bypass -B-AB perfect seal leakage class.
Technical specifications
PROPERTY
VALUE
Connections
Filettato interno
Ways
3 vie
Operating temperature
-10…+150 °C
Weight
1.9 kg
