Item code
V2S464P SITI
On backorder
Description
Two-way control valve for gas applications, DN25 PN10 KVS = 10, stroke = 12.8 mm. For fuel gas delivery applications in industrial burners. Die-cast aluminum alloy body with internal threaded connections. Brass manual idle adjustment pin with double O-ring seal. Fluid temperature limits -10... +90 °C. The valve is supplied motorized with MVB46P servomotor models, 3-point control with a 1 KOhm auxiliary feedback potentiometer.
Technical specifications
PROPERTY
VALUE
Connections
Filettato interno
Ways
2 vie
Operating temperature
-10…+120 °C
Weight
2.2 kg
Documentation
Potrebbe anche interessarti
More items from the same category.

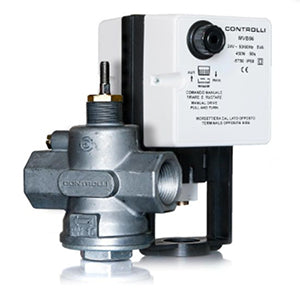

MVGS2
