Item code
TF24-SR
On backorder
Description

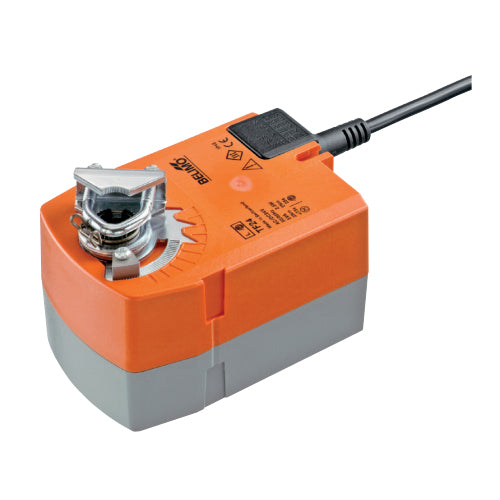

Actuator with spring return for dampers, torque 2.5 Nm, timing 150 s, rotation angle 95°, power supply AC/DC 24 V, proportional control signal in the range 2...10 V, position feedback signal in the range 2...10 V, IP54 protection, manual override with integrated position lock, PVC connection cable length 1 m, reversible rotation direction (right/left), position indicator, for air dampers up to approx. 0.5 m².
Technical specifications
PROPERTY
VALUE
Control signal
Proporzionale
Power supply
AC/DC 24 V
Force / Torque
0...10 Nm (rotativo)
Weight
0.69 kg
