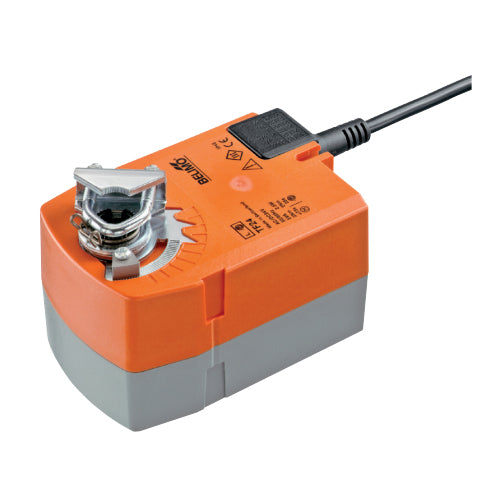

Item code
TF24-S
On backorder
Description
Spring-return damper actuator, torque 2.5 Nm, timing < 75 s, rotation angle 95°, power supply AC/DC 24 V, On/Off control signal, 1 x SPDT auxiliary switch, IP42 protection, manual override with integrated position stop, spring return time < 25 s, 1m PVC cable connection, reversible rotation direction (right/left), position indicator, for air dampers up to approx. 0.5 m².
Technical specifications
PROPERTY
VALUE
Control signal
2 fili
Power supply
AC/DC 24 V
Force / Torque
0...10 Nm (rotativo)
Weight
0.78 kg
