Item code
SV24A-SR-TPC
On backorder
Description

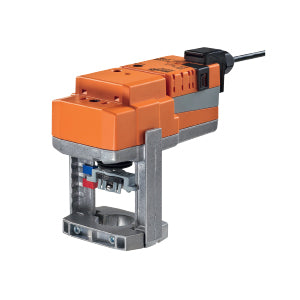

Modulating actuator for globe valves, force 1500 N, timing 150 s / 20 mm, stroke 20 mm, power supply AC/DC 24 V, control signal 2...10 V, feedback signal 0.5...10 V, IP54 protection, manual operation with fixed or temporary button, connection with terminals and 1m PVC cable, reversible direction of rotation (right/left), position indicator.
Technical specifications
PROPERTY
VALUE
Control signal
Proporzionale
Power supply
AC/DC 24 V
Force / Torque
1001...2000 N (lineare)
Weight
1.2 kg
