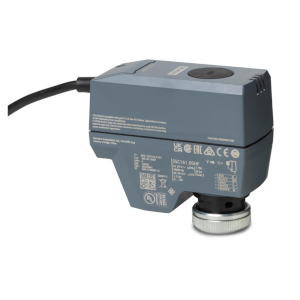

SSC161.05HF (replaces SSC61)

Electric actuator for use with SIEMENS valves with a 5.5 mm stroke, VVP45, VXP45, VMP45, VVP47, VXP47 and VMP47 series, for controlling hot or cold water coils in heating, ventilation, and air conditioning systems. Nominal force: 200 N. Automatic stroke recognition of the valve to which it is applied. Electrical connection via screw terminal block. Manual override with position and direction of movement indication. Control signal: 0...10 Vdc. Running time: 30 s. Power supply 24 Vac/Vdc. In conjunction with the ASK 30 mounting kit, it can be coupled to old Landis & Gyr VVG45.., VXG45 and X3i valves
