Item code
SR230A-S
On backorder
Description

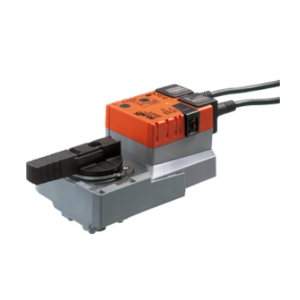

Rotary actuator for ball valves, torque 20 Nm, running time 90 s, rotation angle 90°, power supply AC 230 V, on/off or 3-point control signal, IP54 protection, manual override with push-button, 1 m PVC connection cable, reversible direction of rotation (right/left), integrated mechanical rotation angle limiter, position indicator, 1 auxiliary contact 1xSPDT
Technical specifications
PROPERTY
VALUE
Control signal
3 punti
Power supply
AC 230 V
Force / Torque
11...20 Nm (rotativo)
Weight
1.1 kg
