Item code

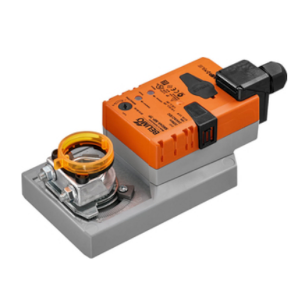

SM24A-MP-TP
On backorder
Description
Damper actuator, torque 20 Nm, running time 150 s, rotation angle 95°, power supply AC/DC 24 V, proportional control signal in the range 2...10 V or adjustable (programmable), position feedback signal in the range 2...10 V or adjustable (programmable), IP54 protection, manual override with push-button, connection on terminals, reversible direction of rotation (right/left), integrated mechanical rotation angle limiter, position indicator, for air dampers up to approx. 4 m², communication via Belimo MP-Bus
Technical specifications
PROPERTY
VALUE
Control signal
Proporzionale
Power supply
AC/DC 24 V
Force / Torque
11...20 Nm (rotativo)
Weight
0.93 kg
