Item code

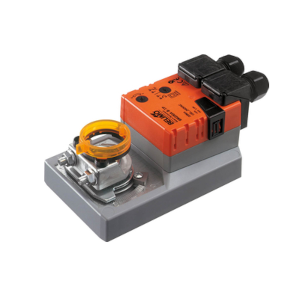

SM230A-S-TP
On backorder
Description
Damper actuator, torque 20 Nm, timing 150 s, rotation angle 95°, power supply AC 230 V, 3-point or On/Off control signal, 1 x SPDT auxiliary contact with adjustable switching point in the range 0...100%, IP54 protection, manual override with button, 1 or 2-wire contact control signal, terminal connection, reversible direction of rotation (right/left), integrated mechanical rotation angle limiter, position indicator, for air dampers up to approx. 4 m².
Technical specifications
PROPERTY
VALUE
Control signal
3 punti
Power supply
AC 230 V
Force / Torque
11...20 Nm (rotativo)
Weight
1.0 kg
