Item code
SKD62
On backorder
Description

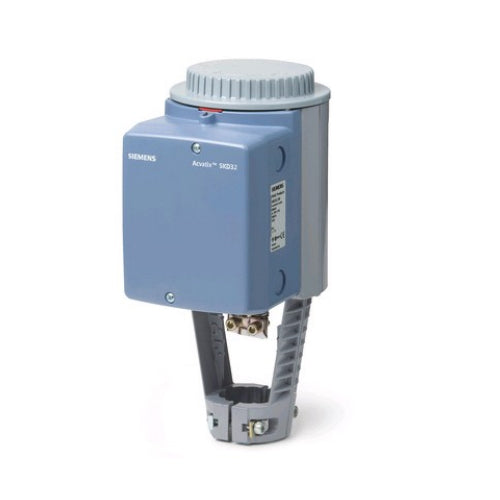

Electro-hydraulic actuator for valves with a 20 mm stroke, control signal 0…10 Vdc, 4…20 mA or 0...1000 Ohm, 24 Vac power supply, 1000 N force, opening time 120 s, closing time 120 s, version with spring return mechanism, manual control and position indicator, suitable for direct mounting on SIEMENS VVF, VVG, VXF and VXG series valves. Does not require calibration after mounting, IP54 protection rating.
Technical specifications
PROPERTY
VALUE
Control signal
Proporzionale
Power supply
AC 24 V
Force / Torque
0...1000 N (lineare)
Weight
3.65 kg
