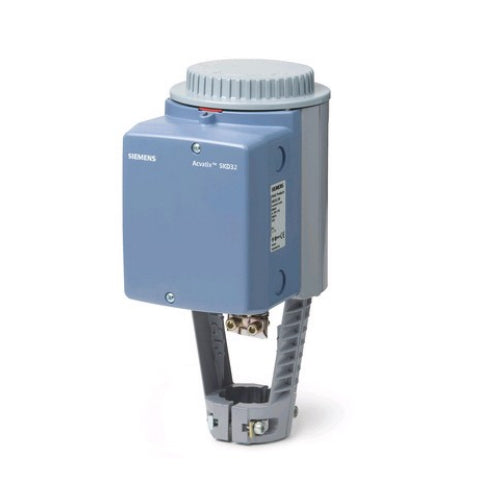

Item code
SKD32.50
On backorder
Description
Electro-hydraulic actuator for valves with 20 mm stroke, 3-position control signal, 230 Vac power supply, 1000 N force, 120 s opening time, 120 s closing time, version without spring return mechanism, manual control and position indicator, suitable for direct mounting on SIEMENS VVF, VVG, VXF and VXG series valves. No calibration required after mounting, IP54 protection rating.
Technical specifications
PROPERTY
VALUE
Control signal
3 punti
Power supply
AC 230 V
Force / Torque
0...1000 N (lineare)
Weight
3.6 kg
