Item code

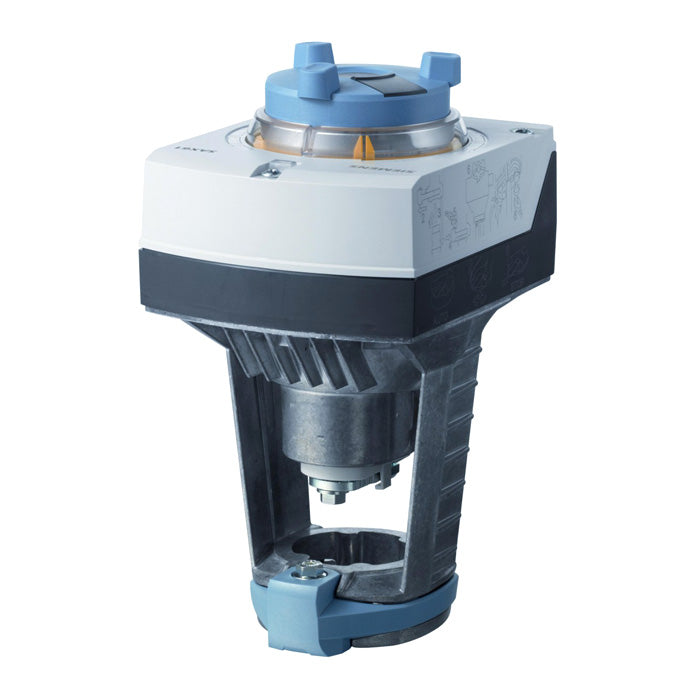

SAX61.03 (replaces SQX62)
On backorder
Description
Configurable valve actuator, 30 s timing, 24 VAC/VDC power supply, 8 VA consumption, 20 mm stroke, complete with mounting bracket for connection to the valve body, 800 N force, IP54 protection, accepted control signals: voltage 0..10 V, current 4..20 mA, potentiometric 0...1000 Ohm, operating status LED indicator, stroke calibration, and manual control.
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC/DC 24 V
Force / Torque
0...1000 N (lineare)
Weight
1.78 kg
