Item code
NM24A-S-TP
On backorder
Description

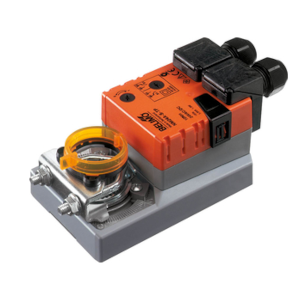

Damper actuator, torque 10 Nm, runtime 150 s, rotation angle 95°, power supply AC/DC 24 V, 3-point or On/Off control signal, 1 x SPDT auxiliary contact with adjustable switching point in the range 0...100%, IP54 protection, manual override with button, control signal with 1 or 2-wire contact, terminal connection, reversible direction of rotation (right/left), integrated mechanical rotation angle limiter, position indicator, for air dampers up to approx. 2 m².
Technical specifications
PROPERTY
VALUE
Control signal
3 punti
Power supply
AC/DC 24 V
Force / Torque
0...10 Nm (rotativo)
Weight
0.85 kg
