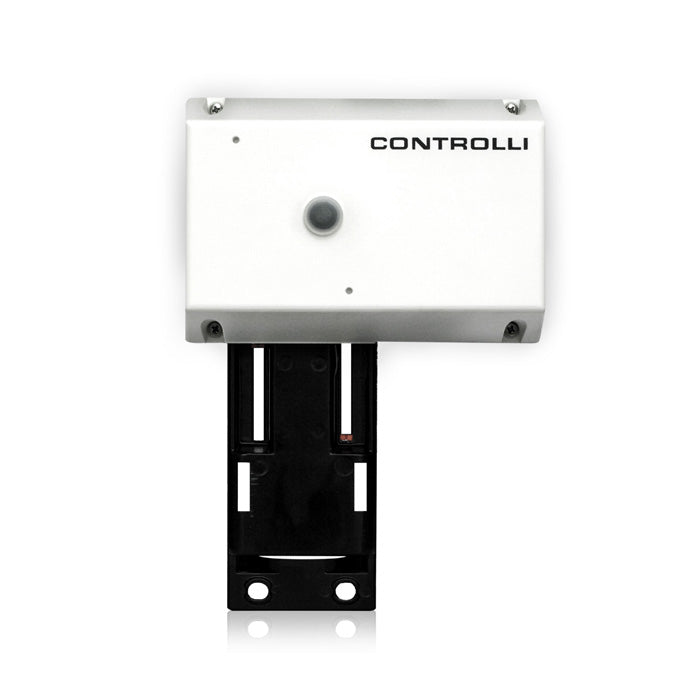

Item code
MVH56EC (replaces MVH56FC)
On backorder
Description
Configurable servo motor for valves, spring return (emergency function) with fully extended coupling (valve stem down), voltage control in the ranges: 0..10 Vdc, 2..10 Vdc, 0...5 Vdc, 2...6 Vdc, 5...10 Vdc, 6...10 Vdc, current in the range 4..20 mA and 3-point control, force 700 N, timing 15-25-35-50-60 s (depending on the type of valve connected), power supply AC/DC 24 V, consumption 12 VA, stroke 5 .. 55 mm, complete with mounting bracket for connection to the valve body, IP55 protection.
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC/DC 24 V
Force / Torque
0...1000 N (lineare)
Weight
5.0 kg
