Item code
MVE522S
On backorder
Description

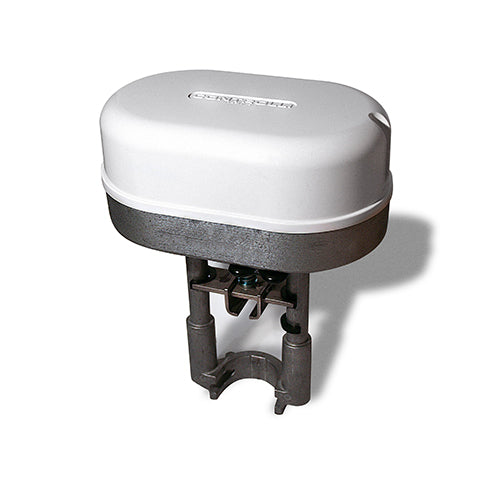

Configurable valve actuator, short stroke, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point, force 2200 N, AC/DC 24 V power supply, running time 15...60 s, stroke 5...60 mm, consumption 25 VA, complete with mounting bracket for connection to the valve body, weight 1.6 kg, protection IP55.
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC/DC 24 V
Force / Torque
> 2000 N (lineare)
Weight
1.6 kg
