Item code
MVE522
In stock
Description

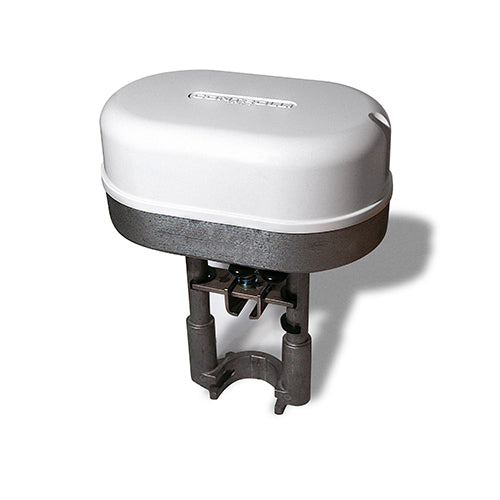

Configurable valve actuator, with long stroke, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point, force 2200 N, AC/DC 24 V power supply, stroke time 60 s constant for each type of stroke, stroke 5...60 mm, power consumption 25 VA, complete with mounting bracket for connection to the valve body, weight 1.7 kg, IP55 protection
Technical specifications
PROPERTY
VALUE
Control signal
Configurable
Power supply
AC/DC 24 V
Force / Torque
> 2000 N (linear)
Weight
1.7 kg
Documentation
