Item code

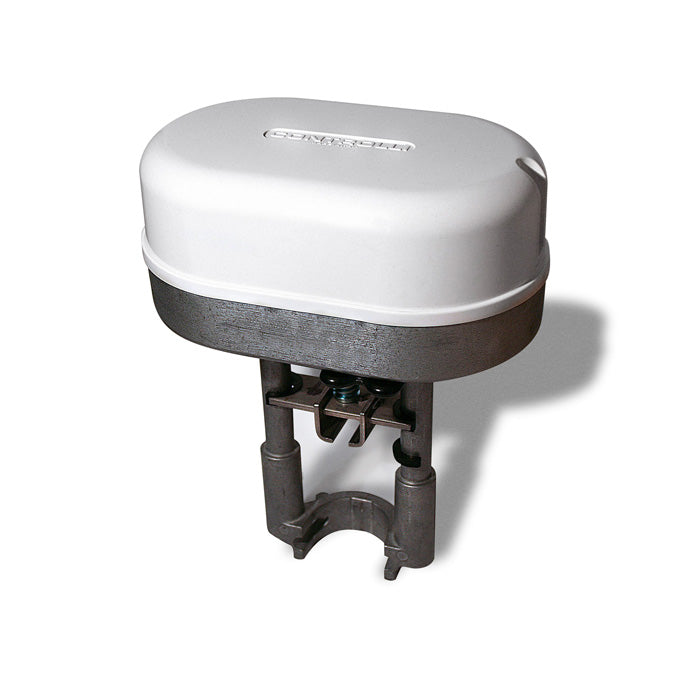

MVE510SR
On backorder
Description
Configurable valve actuator, with short yoke, spring return (fail-safe function) with emergency return to fully open or closed valve position selectable with a jumper, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point, force 1000 N, power supply AC/DC 24 V, running time 15...60 s, stroke 5...60 mm, power consumption 13 VA, complete with mounting bracket for connection to the valve body, weight 1.5 kg, IP55 protection.
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC/DC 24 V
Force / Torque
0...1000 N (lineare)
Weight
1.5 kg
