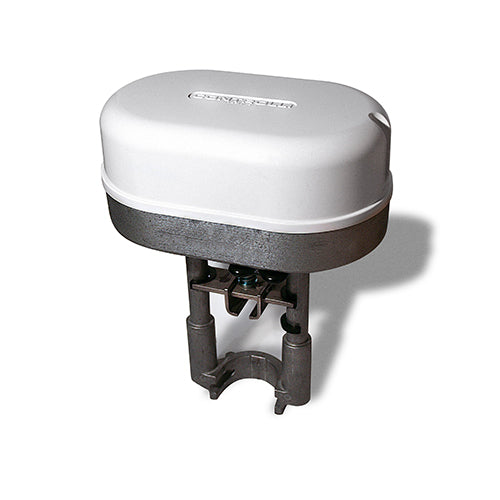

Item code
MVE222-65
On backorder
Description
Configurable valve actuator, with long bracket, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point, force 2200 N, power supply 230 VAC, running time 60 s constant for each type of stroke, stroke 5...60 mm, consumption 25 VA, complete with mounting bracket for connection to the valve body, weight 1.7 kg, IP65 protection.
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC 230 V
Force / Torque
> 2000 N (lineare)
Weight
1.7 kg
