Item code
MVE210R
On backorder
Description

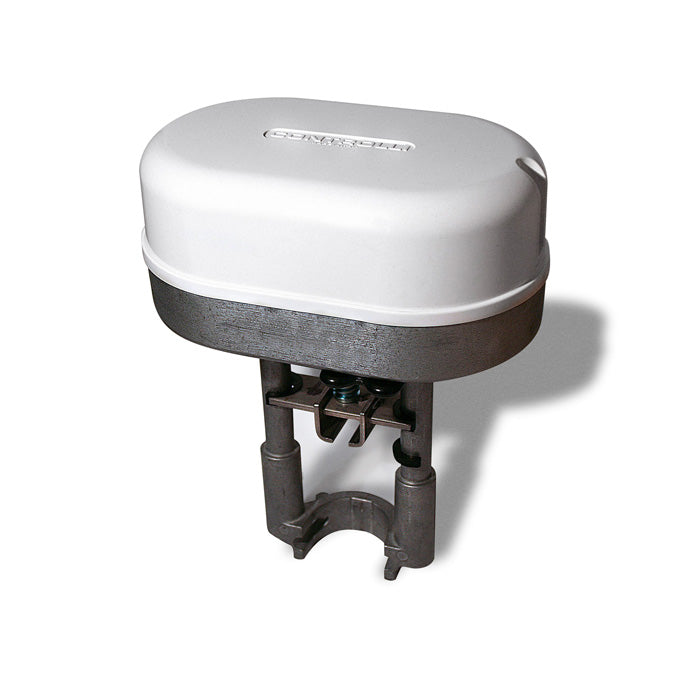

Configurable valve actuator, long bracket, with spring return (emergency function) with selectable emergency return to fully open or closed valve position via jumper, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point, force 1000 N, power supply AC 230 V, running time 15...60 s, stroke 5...60 mm, power consumption 13 VA, complete with mounting bracket for connection to the valve body, weight 1.5 kg, IP55 protection.
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC 230 V
Force / Torque
0...1000 N (lineare)
Weight
1.7 kg
