Item code
MVE206SR
On backorder
Description

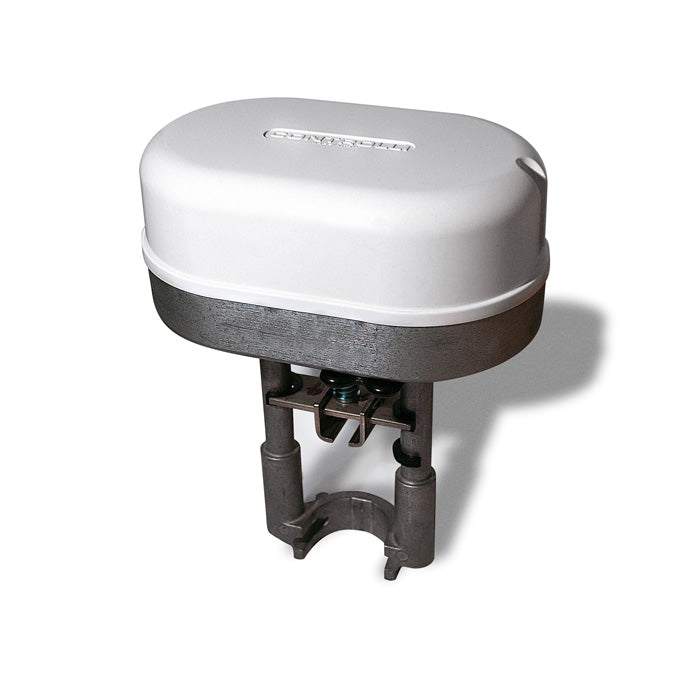

Configurable valve actuator, short bracket, with spring return (emergency function) with emergency return to the fully open or closed valve position selectable with a jumper, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point, force 600 N, AC 230 V power supply, running time 15...60 s, stroke 5...60 mm, power consumption 13 VA, complete with mounting bracket for connection to the valve body, weight 1.5 kg, IP55 protection.
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC 230 V
Force / Torque
0...1000 N (lineare)
Weight
1.7 kg
