Item code
MVE206R-65
On backorder
Description

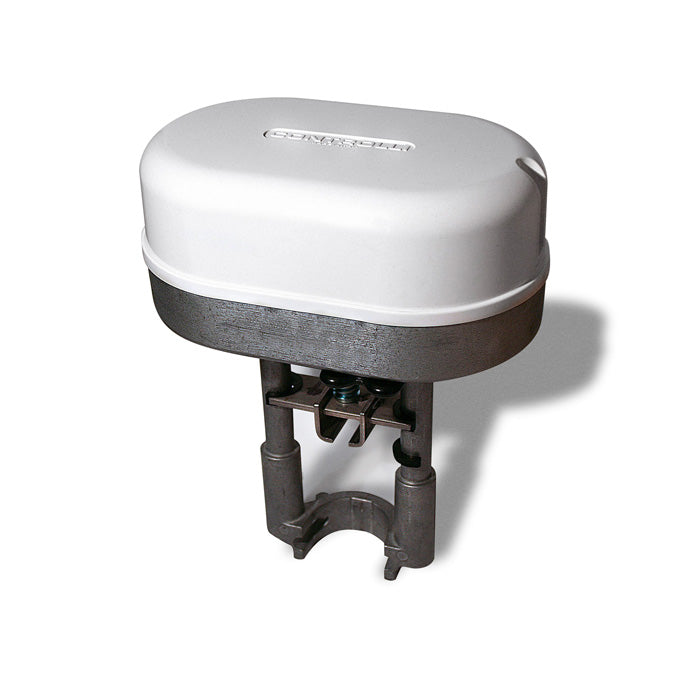

Configurable valve actuator, long bracket, with spring return (emergency function) with emergency return to the fully open or closed valve position selectable with jumper, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point, force 600 N, power supply AC 230 V, stroke time 15...60 s, stroke 5...60 mm, power consumption 13 VA, complete with mounting bracket for connection to the valve body, weight 1.5 kg, IP65 protection.
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC 230 V
Force / Torque
0...1000 N (lineare)
Weight
1.7 kg
