Item code

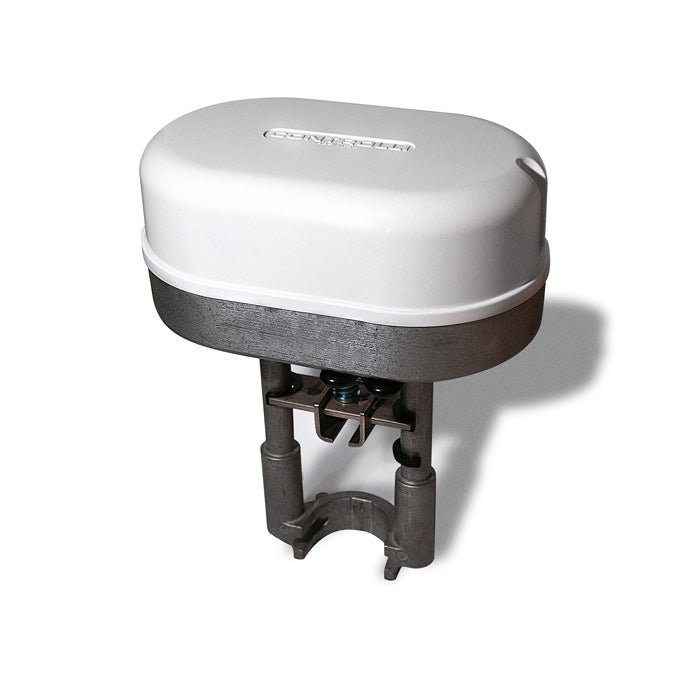

MVE204SR
On backorder
Description
Configurable valve actuator, short stroke, with spring return (emergency function) with emergency return to the fully open or closed valve position selectable with a jumper, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point, force 400 N, AC 230 V power supply, running time 15...60 s, stroke 5...60 mm, consumption 13 VA, complete with mounting bracket for connection to the valve body, weight 1.6 kg, IP55 protection.
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC 230 V
Force / Torque
0...1000 N (lineare)
Weight
1.6 kg
