Item code
MVE204R
On backorder
Description

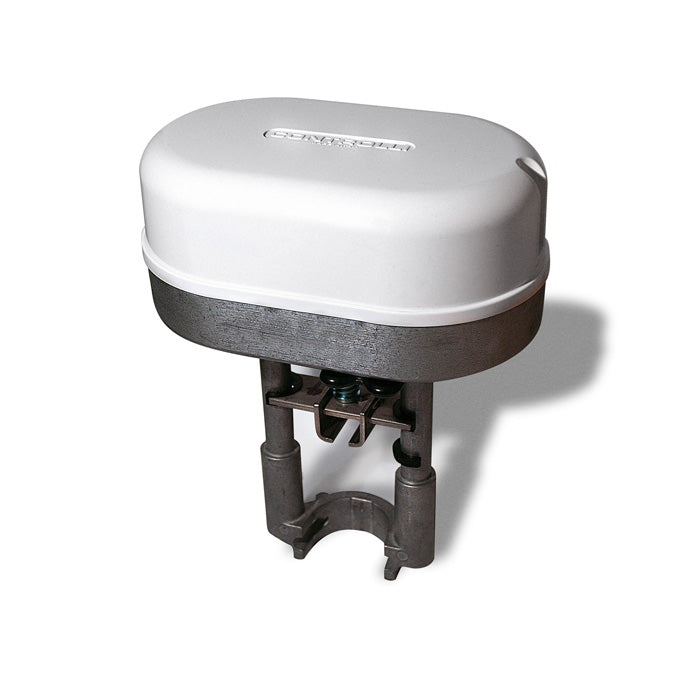

Configurable valve actuator, long bracket, with spring return (emergency function) with emergency return to the fully open or closed valve position selectable with jumper, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point, force 400 N, power supply AC 230 V, running time 15...60 s, stroke 5...60 mm, consumption 13 VA, complete with mounting bracket for connection to the valve body, weight 1.7 kg, protection IP55.
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC 230 V
Force / Torque
0...1000 N (lineare)
Weight
1.7 kg
