Item code

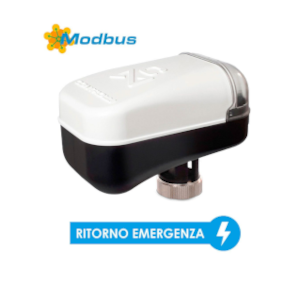

MVC503R-MB
On backorder
Description
Proportional actuator designed for control applications on fan-coil units, small air handling units, solar systems, and the control of post-heating and dehumidification coils where small and compact motorized valves are required. Control signal and feedback via Modbus, 300 N force, 16 mm stroke, IP54 protection rating, 24 Vac/Vdc power supply, 3.6 VA consumption. The MVC503 model allows for easy installation on valves with an M30x1.5 threaded ring. It can be mounted directly on CONTROLLI valve bodies models VMBT, VSBT, 2TBB.T and 3TBB.T
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC/DC 24 V
Force / Torque
0...1000 N (lineare)
Weight
0.4 kg
