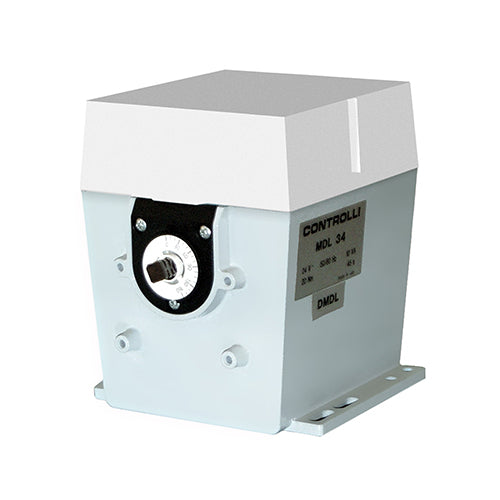

MDL46PA4

Industrial servo motor used in civil and industrial control systems, for controlling dampers and other devices that require angular position control within a maximum angle of 160° (e.g., for modulating the flame of gas or oil burners), two or three-position control, timing 60...107 s, torque 30 Nm, 24 Vac 50/60 Hz power supply, double shaft output, IP55 protection rating, internal shaft release mechanism to allow free rotation in both directions, external graduated position indicator mounted on the shaft outputs. Complete with 1 KOhm potentiometer
