Item code
MDB44
On backorder
Description

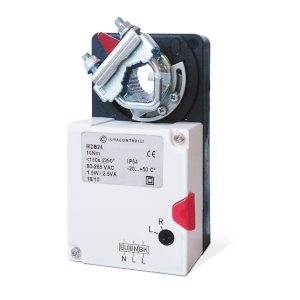

Damper actuator, 10 Nm torque, 150 s runtime, 90° rotation angle, AC/DC 24 V power supply, 3-point or On/Off control signal, IP54 protection, manual override with button, 1 or 2-wire contact control signal, 1 m PVC connection cable, reversible rotation direction (right/left), integrated mechanical rotation angle limiter, position indicator, for air dampers up to approximately 2 m²
Technical specifications
PROPERTY
VALUE
Control signal
3 punti
Power supply
AC/DC 24 V
Force / Torque
0...10 Nm (rotativo)
Weight
0.8 kg
