Item code

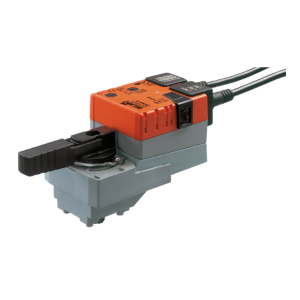

LR24A-S
On backorder
Description
Rotary actuator for ball valves, torque 5 Nm, running time 90 s, rotation angle 90°, power supply AC/DC 24 V, control signal on/off or 3-point, protection IP54, manual override with push-button, 1 m PVC connection cable, reversible rotation direction (right/left), integrated mechanical rotation angle limiter, position indicator, with integrated 1x SPDT auxiliary switch
Technical specifications
PROPERTY
VALUE
Control signal
3 punti
Power supply
AC/DC 24 V
Force / Torque
0...10 Nm (rotativo)
Weight
0.51 kg
