Item code

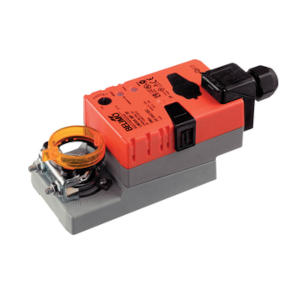

LM24A-MP-TP
On backorder
Description
Damper actuator, torque 5 Nm, runtime 150 s, rotation angle 95°, power supply AC/DC 24 V, proportional control signal in the range 2...10 V or adjustable (programmable), position feedback signal in the range 2...10 V or adjustable (programmable), communication via Belimo MP-Bus, IP54 protection, manual override with button, terminal connection, reversible direction of rotation (right/left), integrated mechanical rotation angle limiter, position indicator, for air dampers up to approx. 1 m²
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC/DC 24 V
Force / Torque
0...10 Nm (rotativo)
Weight
0.5 kg
