Item code

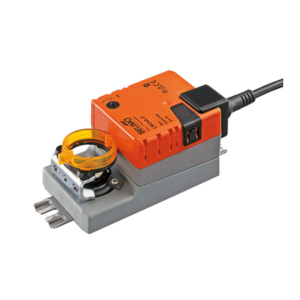

LM24A-F
On backorder
Description
Damper actuator, torque 5 Nm, timing 150 s, rotation angle 95°, power supply AC/DC 24 V, control signal 3-point or On/Off, IP54 protection, manual override with button, control signal with 1 or 2-wire contact, 1 m PVC connection cable, reversible rotation direction (right/left), 8x8 mm square spindle, integrated mechanical rotation angle limiter, position indicator, for air dampers up to approx. 1 m²
Technical specifications
PROPERTY
VALUE
Control signal
3 punti
Power supply
AC/DC 24 V
Force / Torque
0...10 Nm (rotativo)
Weight
0.5 kg
