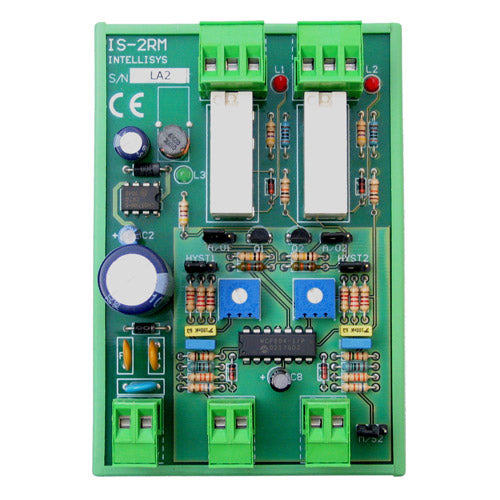

IS/2RM From 0...10 Vdc to ON/OFF

Converts two 0...10 Vdc input signals into two ON/OFF relay output signals, AC/DC 24 V power supply, relay output switching settings configurable within the 0...10 Vdc range using potentiometers, hysteresis values on trip points selectable with jumpers, presence of red LEDs to indicate ON status of relay outputs, IP20 protection.
'Sequencer' operating mode: uses the measurement detected by the first input to control the two relays, depending on the intervention threshold values, settable via potentiometers.
'Independent Channels' operating mode: uses the module as two separate and independent converters, from 0...10 Vdc to ON/OFF.
'Manual Override' operating mode: uses the module to manually control outputs OFF or ON; this mode is typically used to facilitate commissioning activities on systems.
