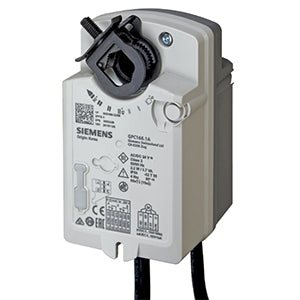

GPC166.1A

Rotary damper actuator with spring return, torque 4 Nm, runtime in normal operation 60 s, runtime in case of power failure 15 s, rotation angle 90°, power supply AC 24 V DC 24...48 V, control signal 0...10 VDC, two auxiliary microswitches, IP54 protection, manual override with dedicated key, PVC connection cable length 0.9 m, direction of rotation with selector switch, integrated mechanical rotation angle limiter, position indicator, for air dampers up to approx. 0.6 m².
