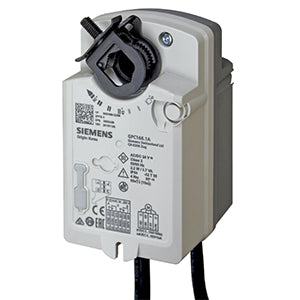

GPC136.1A

Rotary damper actuator with spring return, torque 4 Nm, running time in normal operation 60 s, running time in case of power failure 15 s rotation angle 90°, power supply AC 24 V DC 24...48 V, 2-position control signal, 2 auxiliary microswitches, protection IP54, manual override with dedicated key, control signal with 2-wire contact, PVC connection cable length 0.9 m, direction of rotation dependent on actuator mounting direction, integrated mechanical rotation angle limiter, position indicator, for air dampers up to approx. 0.6 m².
