Item code

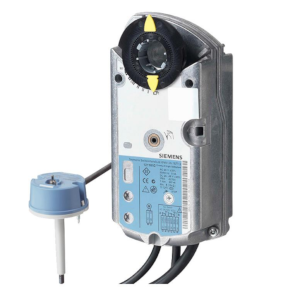

GNA126.1E/T12
On backorder
Description
Spring return actuator for dampers, torque 9 Nm, timing 90/15 s, rotation angle 90°, power supply AC/DC 24 V, On/Off control signal, IP54 protection, manual operation with integrated position lock, spring response time < 15 s, PVC cable connection 0.9 m, reversible rotation direction (right/left), position indicator, pair of auxiliary switches fixed at 5° and 80°. Square shaft connection 12x12 mm, with thermal fuse (72°C)
Technical specifications
PROPERTY
VALUE
Control signal
2 fili
Power supply
AC/DC 24 V
Force / Torque
0...10 Nm (rotativo)
Weight
1.3 kg
