Item code
GNA126.1E/12
On backorder
Description

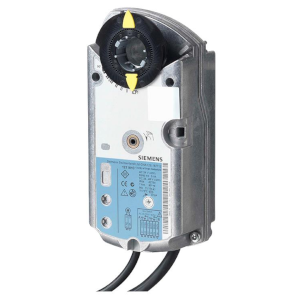

Spring return damper actuator, torque 9 Nm, timing 90/15 s, rotation angle 90°, power supply AC/DC 24 V, On/Off control signal, IP54 protection, manual override with integrated position stop, spring reset time < 15 s, 0.9 m PVC cable connection, reversible direction of rotation (right/left), position indicator, pair of auxiliary switches fixed at 5° and 80°. 12x12 mm square shaft connection
Technical specifications
PROPERTY
VALUE
Control signal
2 fili
Power supply
AC/DC 24 V
Force / Torque
0...10 Nm (rotativo)
Weight
1.2 kg
