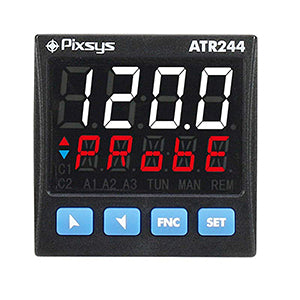

ATR244-12ABC

PID controller with 1 control loop and four set-points, dimensions 48 x 48 mm (front panel) x 80 mm, 1 analog input with many options for sensor configuration, 2 PNP digital inputs, 2 relay digital outputs 2 A, 2 PNP digital outputs 12 Vdc 25 mA max, 1 analog output 4…20 mA / 0…10 Vdc, extended AC/DC power supply range 24...230 V, 4 white digits + 5 red digits + 6 indication LEDs/memos display, IP65 front panel protection with gasket, IP20 terminal blocks.
