Item code
ATR171-14ABC
On backorder
Description

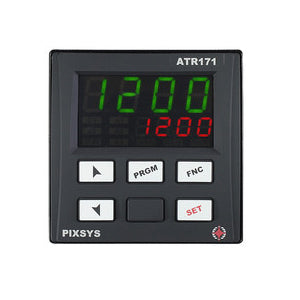

PID controller with single control loop and four set-points, dimensions 72 x 72 mm (front panel) x 99 mm, 1 analog input with many options for sensor configuration, 1 digital input, 3 8A relay digital outputs, 1 12Vdc 30mA max PNP digital output, extended AC/DC 24...230V power supply range, 4 green digits + 4 red digits + 6 indication LEDs display, IP54 front panel protection (IP65 with gasket), IP30 enclosure, IP20 terminal blocks.
Technical specifications
PROPERTY
VALUE
Weight
0.25 kg
Documentation
