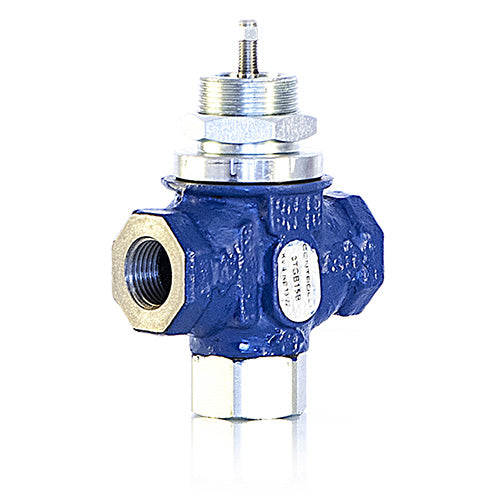

3TGB15B

Three-way mixing globe valve, DN15 PN16 KVS = 4, for water or glycol water with up to 60% mixture, cast iron body EN1561 GJL-250 with internal threaded connections, brass plug EN12164 CW614N, stainless steel stem with M8 thread at the top, equal percentage control characteristic on port A-AB, linear control characteristic on port B-AB, leakage rate port A-AB < maximum 0.001% of Kvs, leakage rate port B-AB < 0.1% of Kvs, stroke 11.5 mm, fluid temperature limits --5... +140 ° C. Can be motorized with MVB CONTROLLI series actuators.
