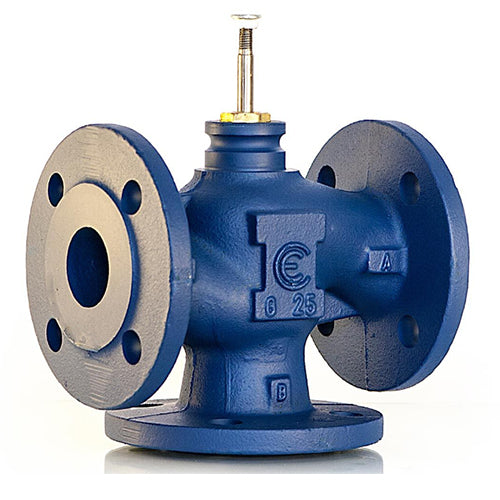

3FGB65L

Three-way globe valve, bubble-tight, DN65 PN16 KVS = 63, for water or glycol water with a mixture not exceeding 50%, cast iron body with flanged connections, cast iron seat, forged brass plug, PTFE seals, 9 mm diameter stainless steel stem, stem seals with EPDM O-rings, can be assembled with MVE and MVH series actuators, equal percentage control characteristic for the direct port, linear control characteristic for the angle port, direct port leakage = bubble-tight, angle port leakage = bubble-tight, fluid temperature limits -10...+150 °C, maximum applicable differential pressure: see tables in the technical bulletin with reference to the type of actuator applied.
